New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall

New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall

  • New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
  • New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
  • New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
  • New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall
商品の詳細:
Place of Origin: Shenzhen China
ブランド名: KAILITE
証明: CE RoHS ISO9001 UL FCC CCC
Model Number: P1.25 P1.56 P1.95 P2.5 P2.6
お支払配送条件:
Minimum Order Quantity: 2 square meters
価格: 交渉可能
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
連絡先
詳細製品概要

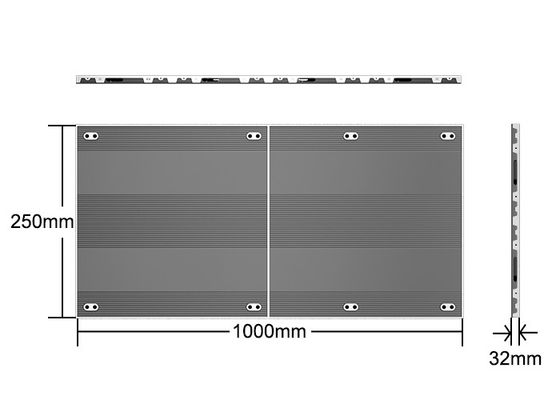

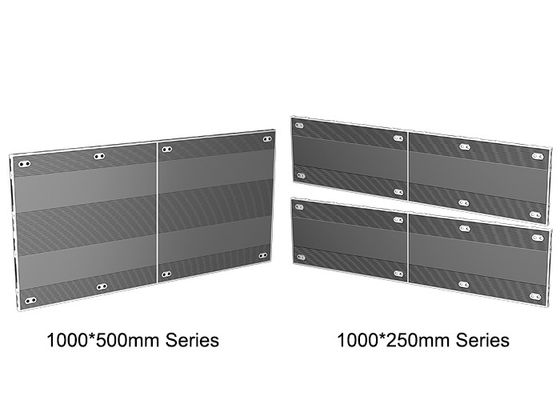

Product name: Ultra Thin Aluminum Indoor LED Video Wall Cabinet size: 1000*500mm/1000/250mm
Module Size: 250*250mm Maintenance way: Front
Life span: >100,000 Hours Module Connection: Pin connection(Hard connection)
Installation Method: Hanging/Mounted on the wall Input Voltage: 100-240V AC

New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall





Description of Ultra Thin Aluminum Indoor LED Video Wall



Indoor LED Video Wall Panel pixel include 1.25mm, 1.56mm, 1.95mm, 2.5mm, 2.604mm, 2.97mm, 3.91mm, within these pixels, 2.5mm, 1.95mm, are the most hot-selling and highest cost-effective series. You can use it in office for conference display or fixed in shopping mall for advertising.




Product Specification:


Item P1.25 P1.56 P1.95 P2.5
Pixel pitch 1.25mm 1.56mm 1.95mm 2.5mm
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Module resolution 200×200 160×160 128×128 100×100
Physical density 640000 dots/㎡ 109600 dots/㎡ 262144 dots/㎡ 160000 dots/㎡
LED type SMD1010 SMD1212 SMD1515 SMD1515
Cabinet size 1000*500*32mm 1000*500*32mm 1000*500*32mm 1000*500*32mm
Cabinet resolution 800*400 640*320 512*256 400*200
Maintenance way Front Front Front Front
Best viewing distance ≥1.2m ≥1.5m ≥1.9m ≥2.5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/64 Scan 1/40 Scan 1/32 Scan 1/25 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate over 3840Hz over 3840Hz over 3840Hz over 3840Hz
Brightness 700-800nits 700-800nits 700-800nits 700-800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP40 IP40 IP40 IP40
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002





New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall 0





Features of products:


1. Ultra thin, aluminum light weight cabinet.



2. HD display, pricise connection.


3. Quick installation.

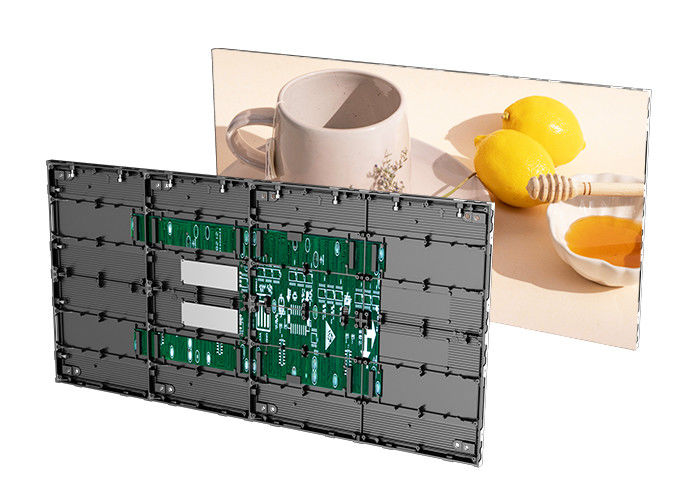

4. Front maintenance design, easy to replace modules or repair receive card and power supply.



5. Seamless splicing.





Shipping and Package



The main shipping way is by sea and air, conbined with road transport. we have different choices for package, including Wooden case (most time for fixed series), flight case and cartoon.



New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall 1

New Design Ultra Thin 32mm Thickness Aluminum Indoor LED Video Wall 2



After-sell service:


1. Providing controller and software manual, to help customer handle the functions quickly.


2. providing free frame structure drawing, as well as power and data cables wiring diagram. easy for you to set up the led screen.



3. Failure maintenance of LED panels.


4. Providing customer with the loading program, remote assistance when necessary.


5. 2 years quality guarantee period.




FAQ:


1. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools, then i
nstall it step by step according to the drawing.


2. Do you test all your goods before delivery?
Yes, all modules will be tested during production, the complete screen will be aging test before shipment.


3. Is it okay to print my logo on your product?

Yes that's okay for us, we provide free printing service.



4. What's your package and shipping way?
Goods are packed with wooden or flight case ; delivered by air or sea.



5. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
